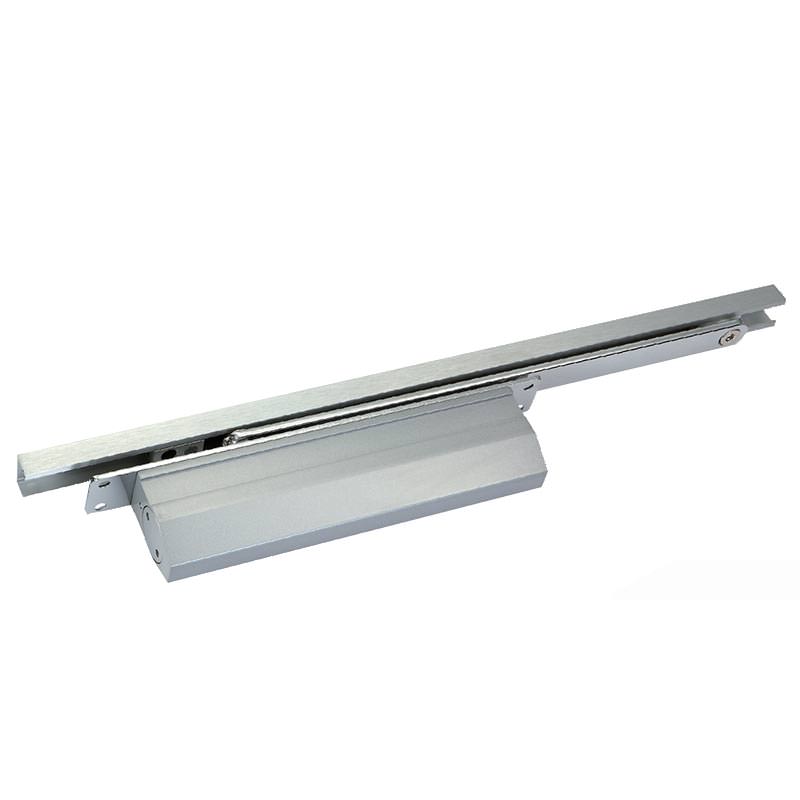

Coburn Ultima 4F; Concealed Door Closer

Coburn Ultima 4F; Concealed Door Closer

Concealed Door Closer

Category: Tag:
DOWNLOAD DATASHEET
Enquire about this product:

ENQUIRE


Features

  • Concealed door closer with adjustable closing and latching speeds
  • Rack and pinion mechanism
  • Can be installed with standard or hold open arm
  • Non-handed: suitable for left and right hand opening doors

Technical Specifications

  • Door Weight: 80kg
  • Maximum Door Width: 1100mm*
  • Closing Force: Fixed Size 4
  • Dimensions: 215mm x 53.5mm x 32mm
  • Template Fixed
  • Certified for 500,000 Cycles
    – EN1154:1996 + A1:2002

* The stated maximum door width is for standard installation. In the case of unusually high doors or where the door is located in a draughty or windy position a larger power size of door closer should be used.

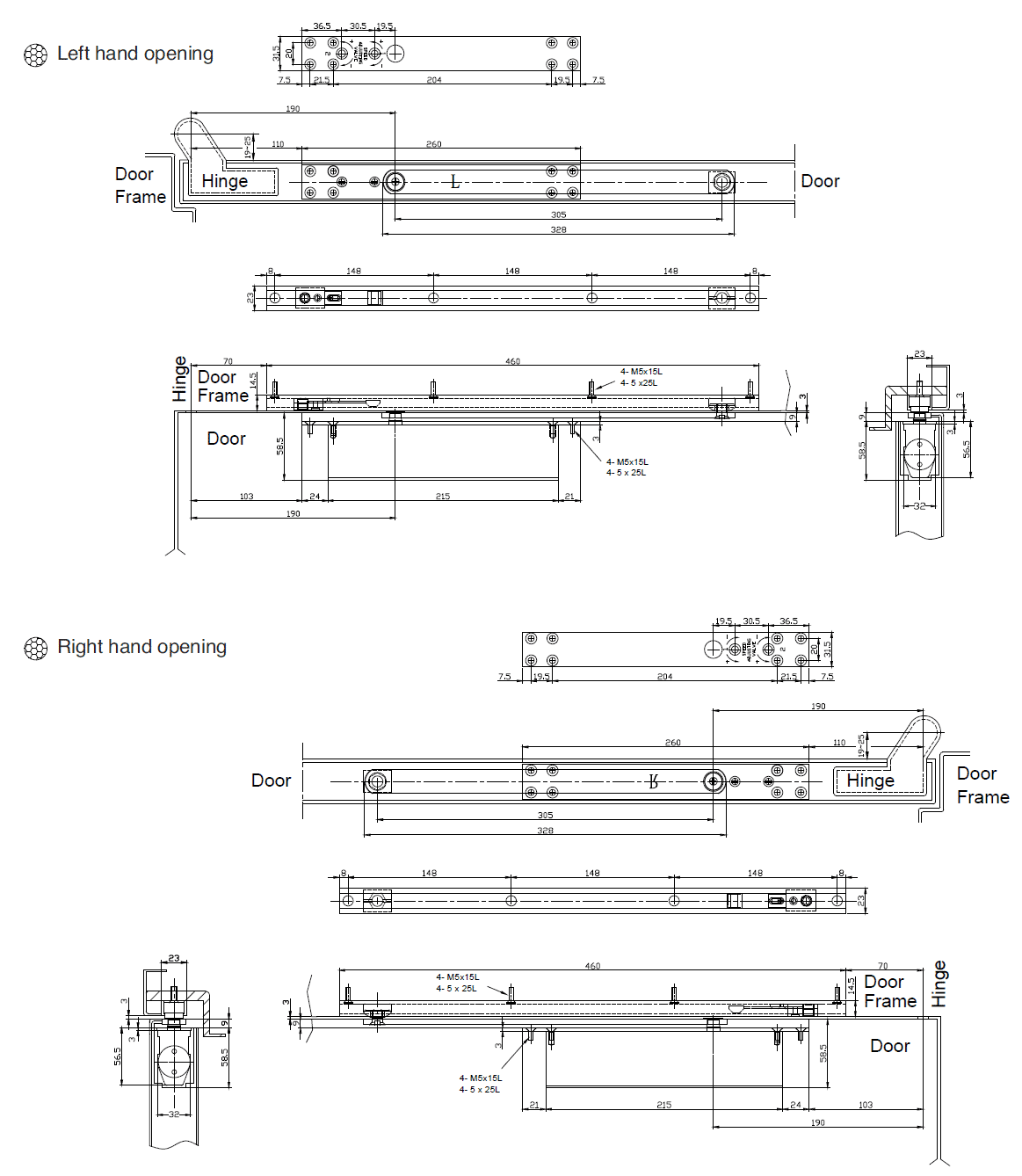

Diagrams

Click to enlarge:
