Coburn Ultima 3-6; Concealed Door Closer

Coburn Ultima 3-6; Concealed Door Closer

Concealed Door Closer

Category: Tag:
DOWNLOAD DATASHEET
Enquire about this product:

ENQUIRE


Features

  • Concealed door closer with adjustable closing and latching speeds
  • CAM action for enhanced efficiency and durability
  • Adjustable power size 3-6
  • Size 3: Maximum door width 950mm*
  • Size 4: Maximum door width 1100mm*
  • Size 5: Maximum door width 1250mm*
  • Size 6: Maximum door width 1400mm*
  • Can be installed with standard or hold open arm
  • Non-handed: suitable for left and right hand opening doors

* The stated maximum door width is for standard installation. In the case of unusually high doors or where the door is located in a draughty or windy position a larger power size of door closer should be used.

Technical Specifications

  • Door Weight: 60kg – 180kg
  • Closing Force: 3 to 6
  • Dimensions: 250mm x 51mm x 40mm*
  • Certified for 500,000 cycles – EN1154:1996 + A1:2002

* The stated maximum door width is for standard installation. In the case of unusually high doors or where the door is located in a draughty or windy position a larger power size of door closer should be used.

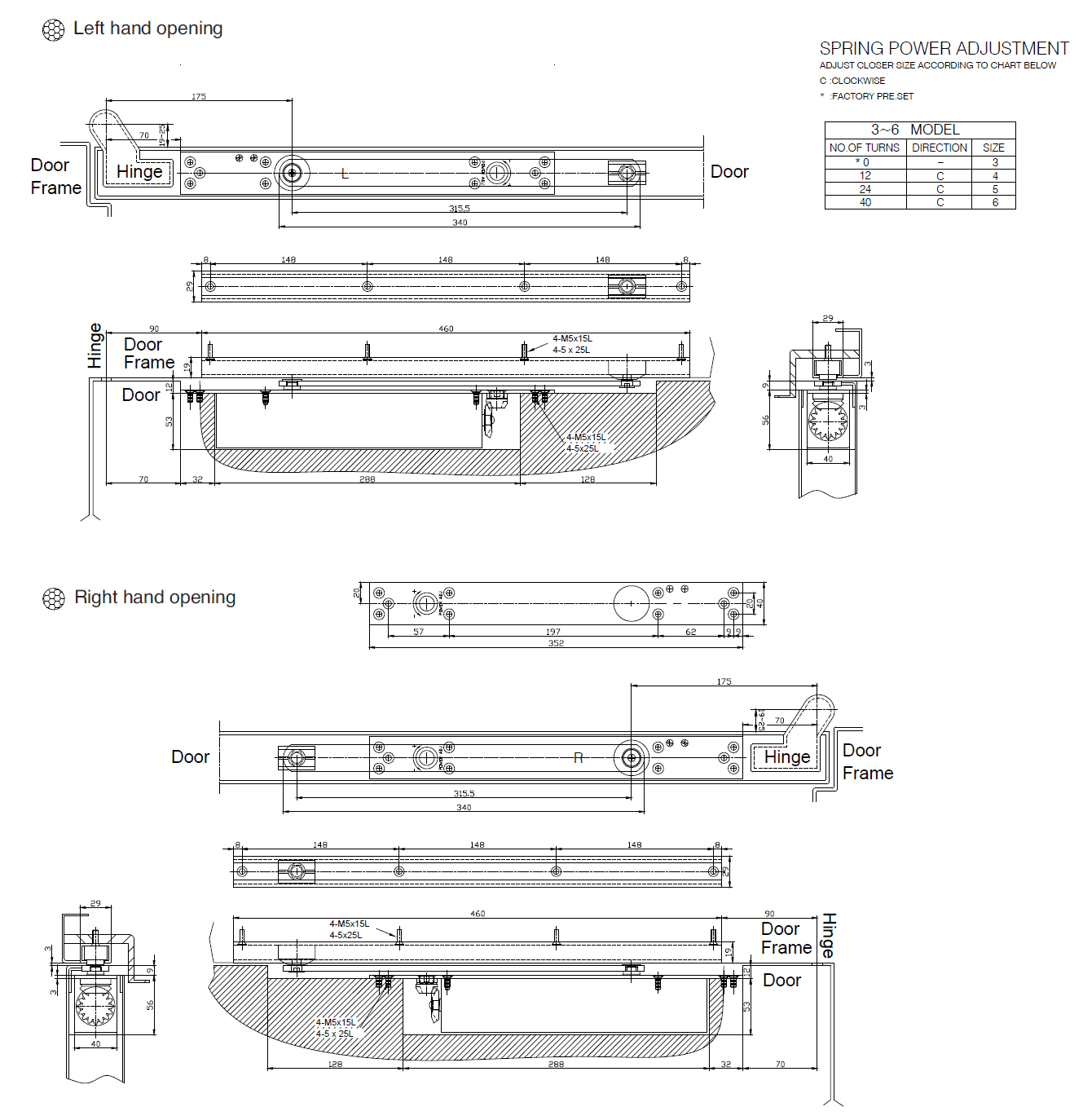

Diagrams

Click to enlarge:
