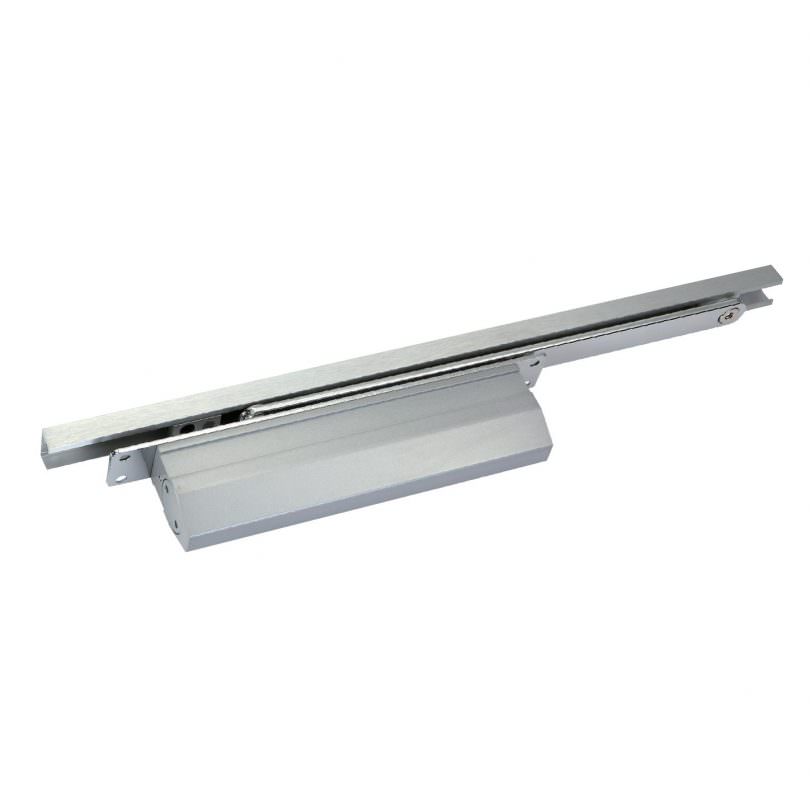

Coburn Ultima 3F; Concealed Door Closer

Coburn Ultima 3F; Concealed Door Closer

Concealed Door Closer

Category: Tag:
DOWNLOAD DATASHEET
Enquire about this product:

ENQUIRE


Features

  • Concealed door closer with adjustable closing and latching speeds
  • Rack and pinion mechanism
  • CE marked
  • Can be installed with standard or hold open arm
  • Non-handed: suitable for left and right hand opening doors

Technical Specifications

  • Maximum Door Weight: 60kg
  • Maximum Closing Width: 950mm*
  • Closing Force: Fixed Size 3
  • Dimensions: 215mm x 53.5mm x 32mm
  • Template Fixed
  • CE Marked
    – Certified for 500,000 Cycles
    – One Hour Fire Test

* The stated maximum door width is for standard installation. In the case of unusually high doors or where the door is located in a draughty or windy position a larger power size of door closer should be used.

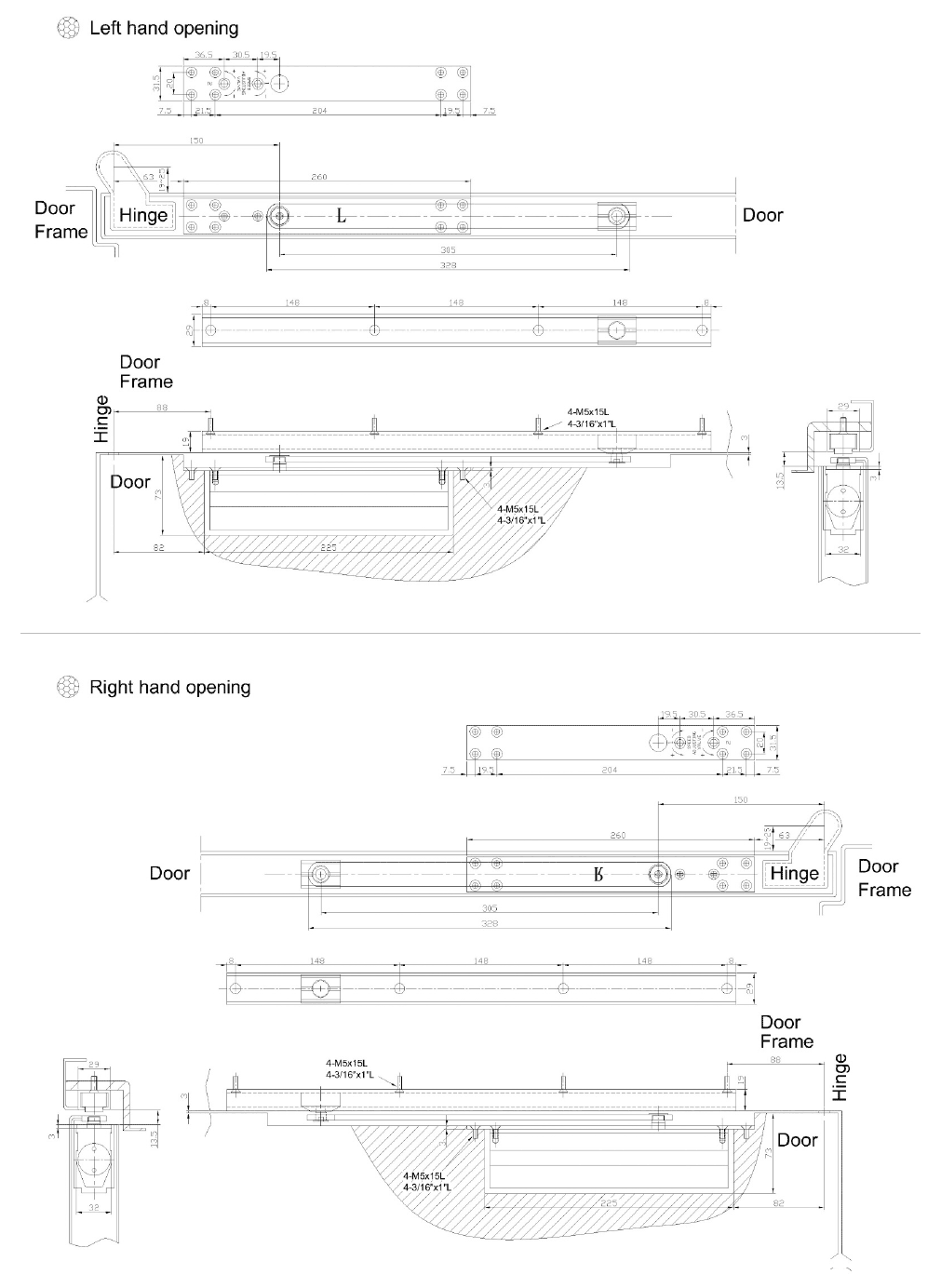

Diagrams

Click to enlarge:
