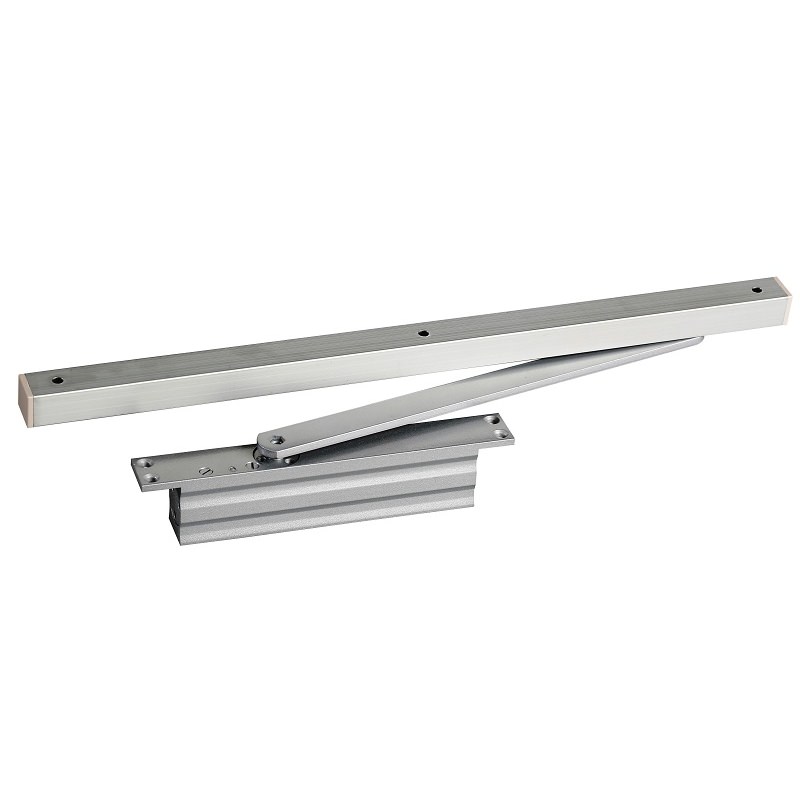

Coburn Ultima 2F; Concealed Door Closer

Coburn Ultima 2F; Concealed Door Closer

Concealed Door Closer

Category: Tag:
DOWNLOAD DATASHEET
Enquire about this product:

ENQUIRE


Features

  • Concealed door closer with adjustable closing and latching speeds
  • Rack and pinion mechanism
  • Slim body ideal for thin doors
  • Hold open arm comes as standard
  • Non-handed: suitable for left and right hand opening doors

Technical Specifications

Door Weight: 25-45kg
Maximum Closing Width: 850mm*
Closing Force: Fixed Size 2
Dimensions: 160mm x 26mm x 38mm
Template Fixed
Tested for 300,000 Cycles

* The stated maximum door width is for standard installation. In the case of unusually high doors or where the door is located in a draughty or windy position a larger power size of door closer should be used.

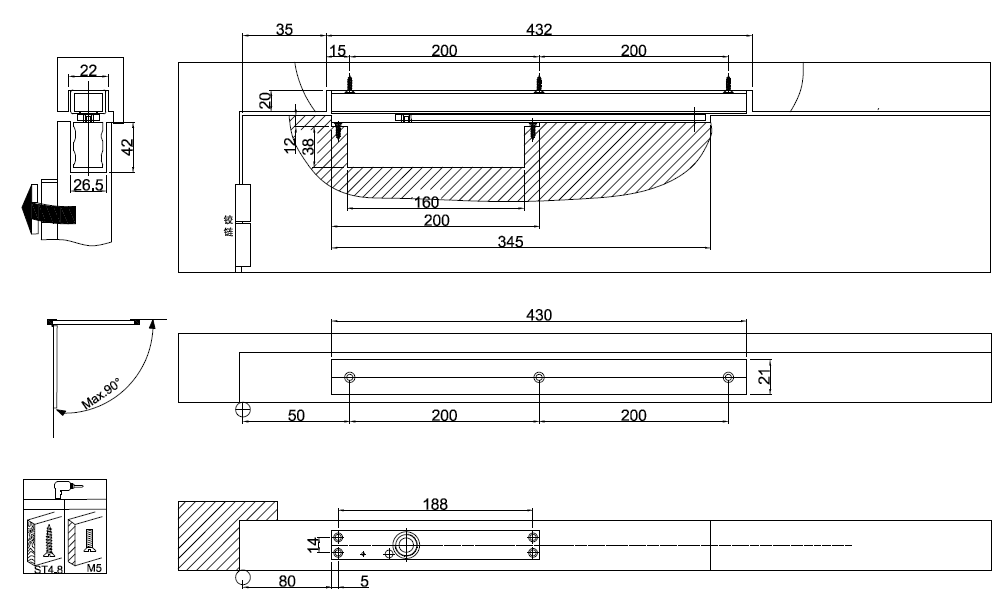

Diagrams

Click to enlarge:
