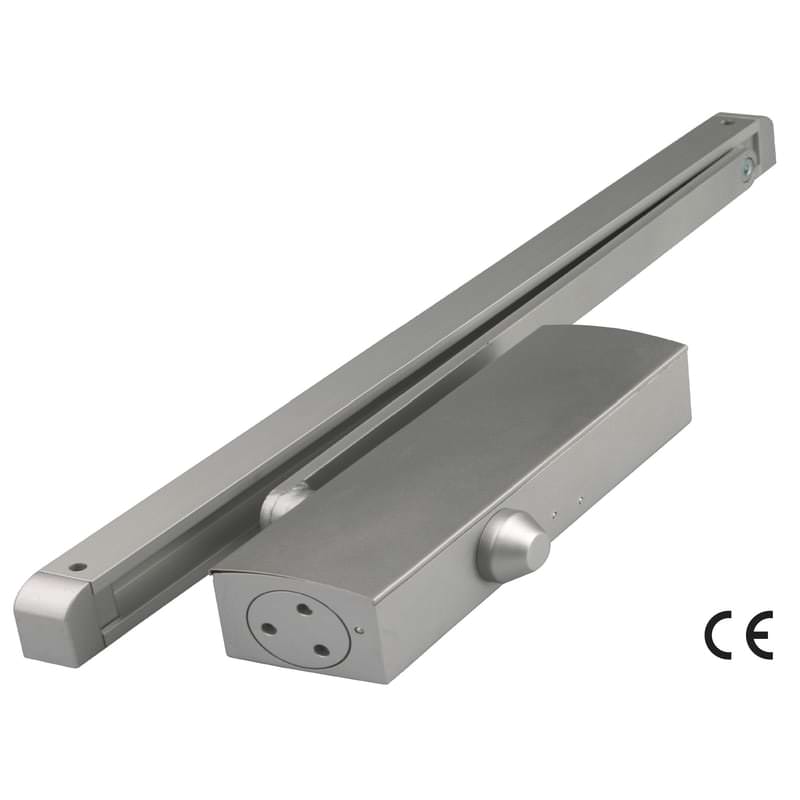

Track Arm Prima 3F; Face Fixed Door Closer

Track Arm Prima 3F; Face Fixed Door Closer

Face Fixed Door Closer

Category: Tag:
DOWNLOAD DATASHEET
Enquire about this product:

ENQUIRE


Features

  • High strength die cast aluminium body
  • Fixed Closing force Size 3
  • All weather finish for working temperature 55°C to -42°C
  • Slide Track Arm as standard
  • Rack and pinion mechanism
  • Non-handed: suitable for left and right hand opening doors
  • Integrated Hold open as standard

Technical Specifications

  • Door Weight: 40 – 80kg
  • Maximum Door Width: 950mm*
  • Closing Force: Size 3
  • Dimensions: 220mm x 42mm x 55mm
  • CE Certified
  • Tested for 3 Hours Fire Rating

* The stated maximum door width is for standard installation. In the case of unusually high doors or where the door is located in a draughty or windy position a larger power size of door closer should be used.

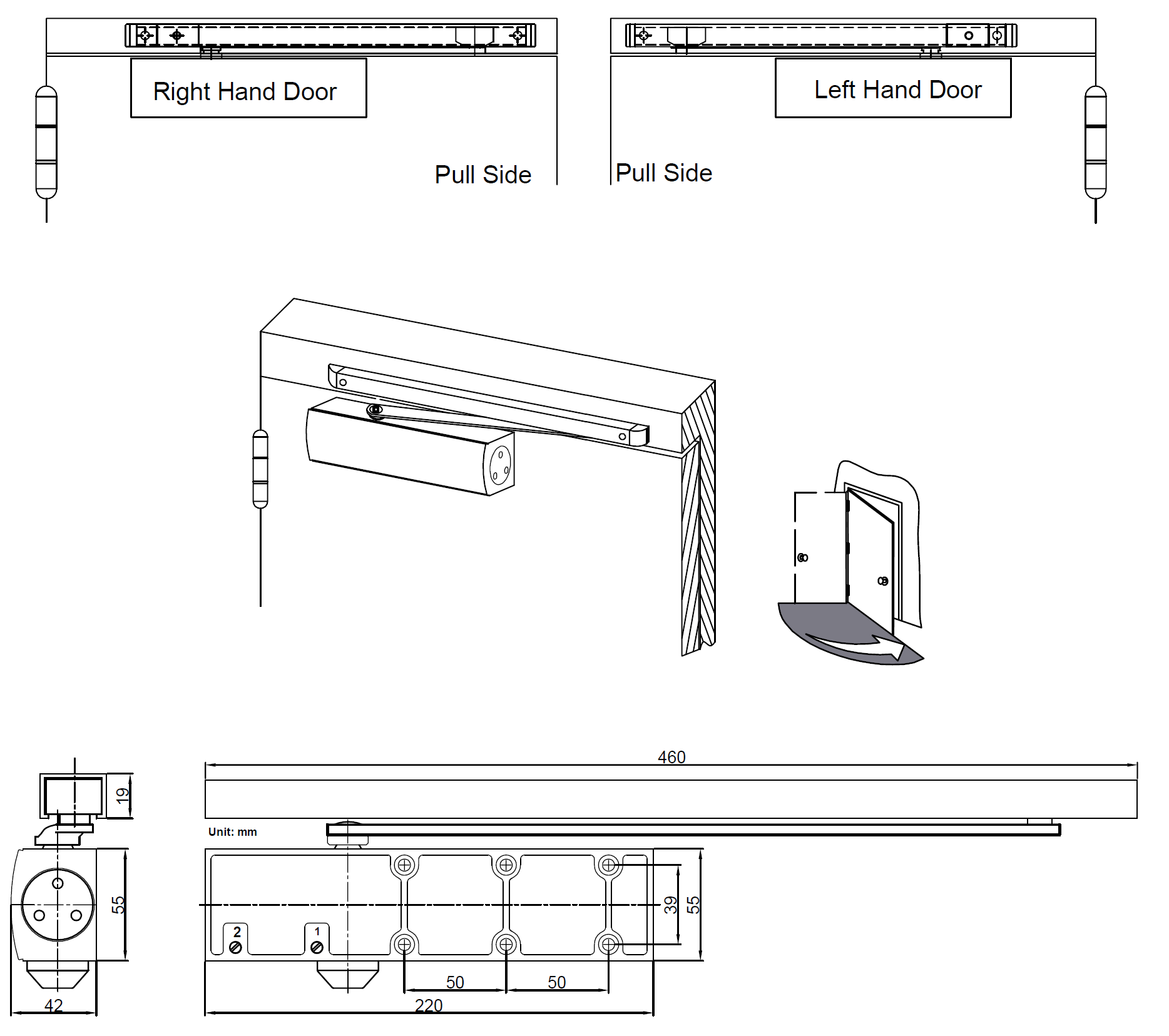

Diagrams

Click to enlarge:
