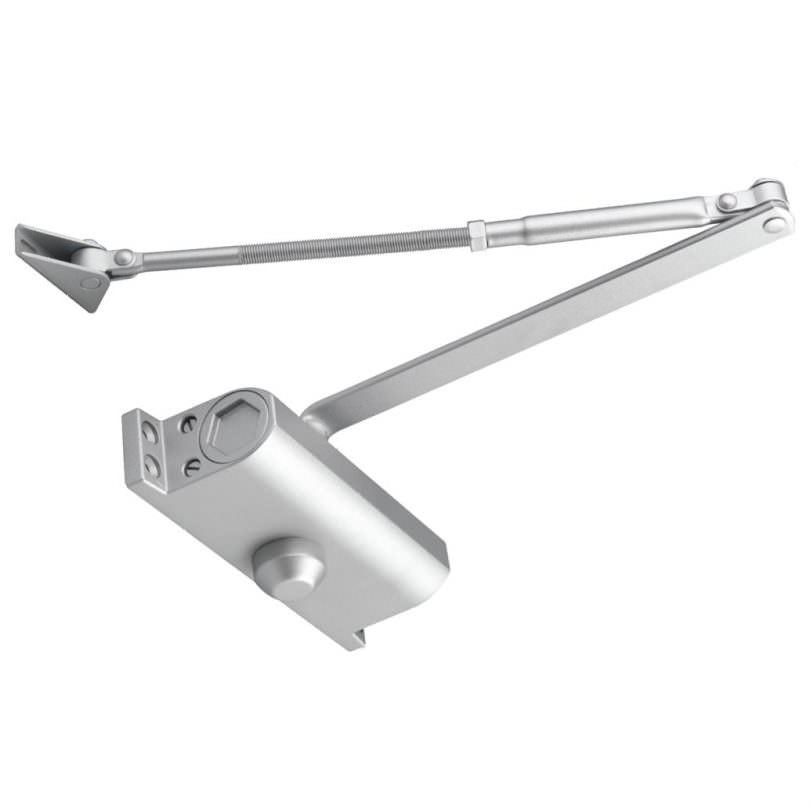

Coburn Prima 4F; Face Fixed Door Closer

Coburn Prima 4F; Face Fixed Door Closer

Face Fixed Door Closer

Category: Tag:
DOWNLOAD DATASHEET
Enquire about this product:

ENQUIRE


Features

  • High strength die cast aluminium body
  • Adjustable closing and latching speeds
  • All weather finish for working temperature 55°C to -42°C
  • Standard regular arm and top frame installation
  • Parallel arm bracket for parallel arm installation (optional)
  • Rack and pinion mechanism
  • Non-handed: suitable for left and right hand opening doors

Technical Specifications

  • Door Weight: 65 – 85kg
  • Maximum Door Width: 1100mm*
  • Closing Force: Size 4
  • Dimensions: 204mm x 42mm x 71mm
  • UL Certified (R39475)
  • Tested for 3 Hours Fire Rating

* The stated maximum door width is for standard installation. In the case of unusually high doors or where the door is located in a draughty or windy position a larger power size of door closer should be used.

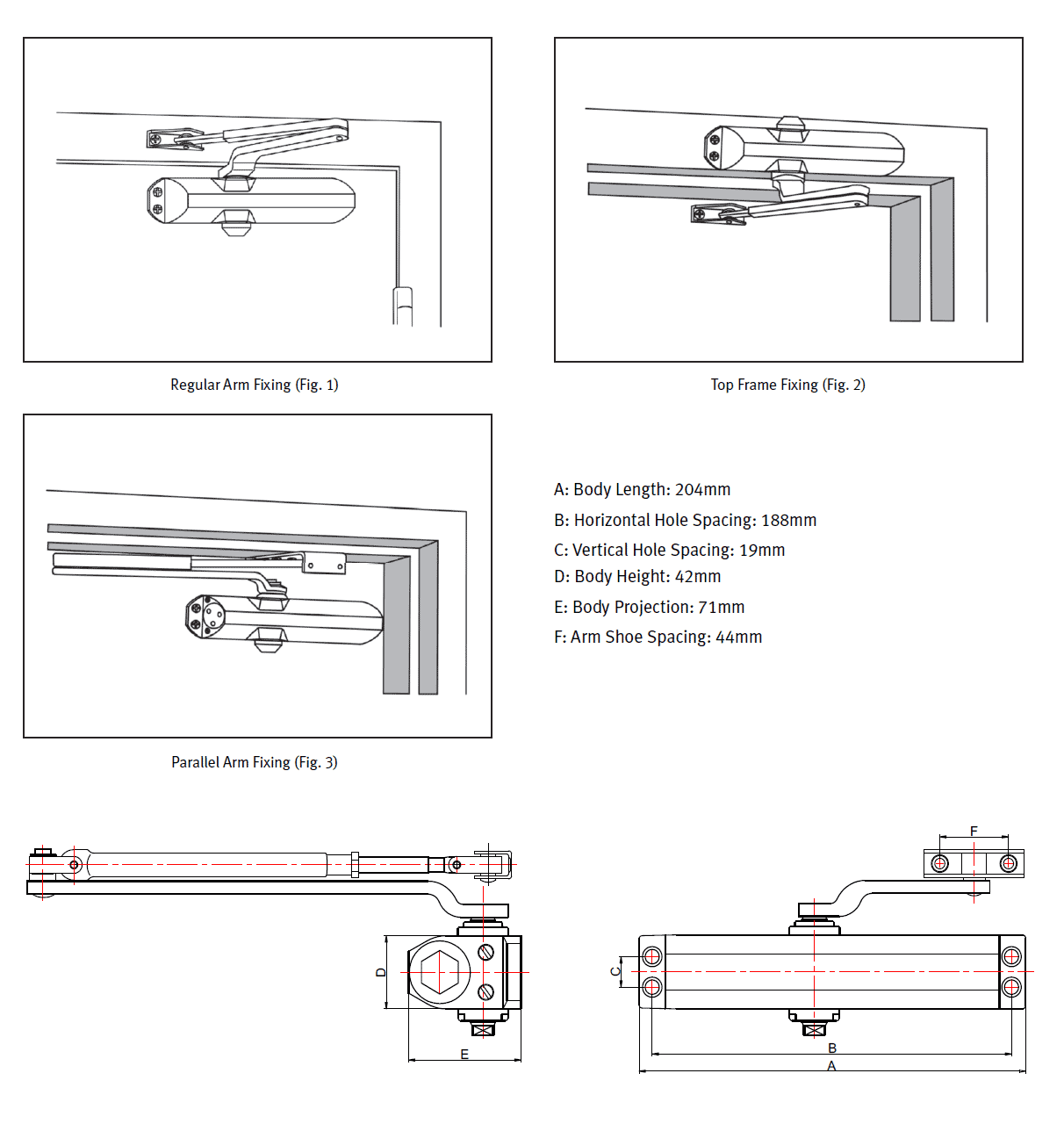

Diagrams

Click to enlarge:
